Pybricks styret 9V

pyprojekt, Sydhavn 2024

Pybricks controled LEGO 9V train trough relays.



NXT styret 9V  - NXT pic.

NXT + IR link put together wih 9V can be used to control train and switch functions (up to 11 output)



NXT styret IR

fra Legotog-workshop i Janderup 2014

NXT + IR link + Ultrasonic sensor



SBrick demo

fra Hørve 2014

SBrick lets you control power funktions with tabloid or cell phone, longer infrared range and more input. (up to 64)



Smalspor

fra Legotog-workshop i Janderup 2014



WEDO demo - pic./ Scratch project (sb)

fra Legotog-workshop i Janderup 2014

Lego WeDo with Motion sensor can in combination with 9V be used to program light train (5V) and even add sound to.

WEDO styret S-tog

WEDO styret overskæring









Management

Management /Modification /Studies

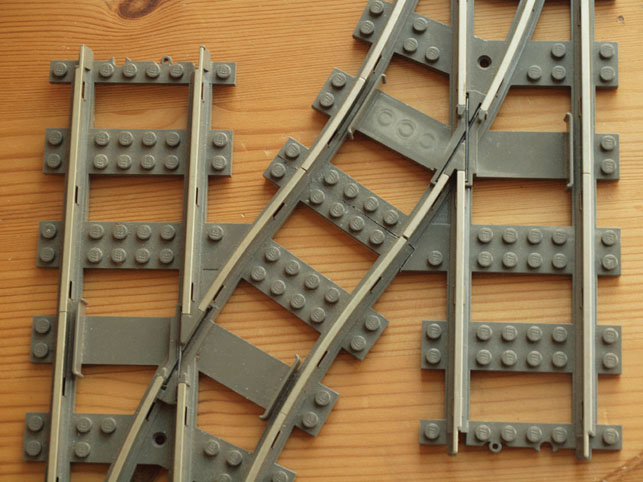

Switch point. prefer to switch on the spring. (It is also possible to modify the resistance by removing the back plate) Without resistance the little Red engine from the 90's can be used.



Switch point switching to the spring.

PF switch point,

Year: 2012

Pcs: 38

Instruction: LDD (pdf) /LDD (lft)

Video

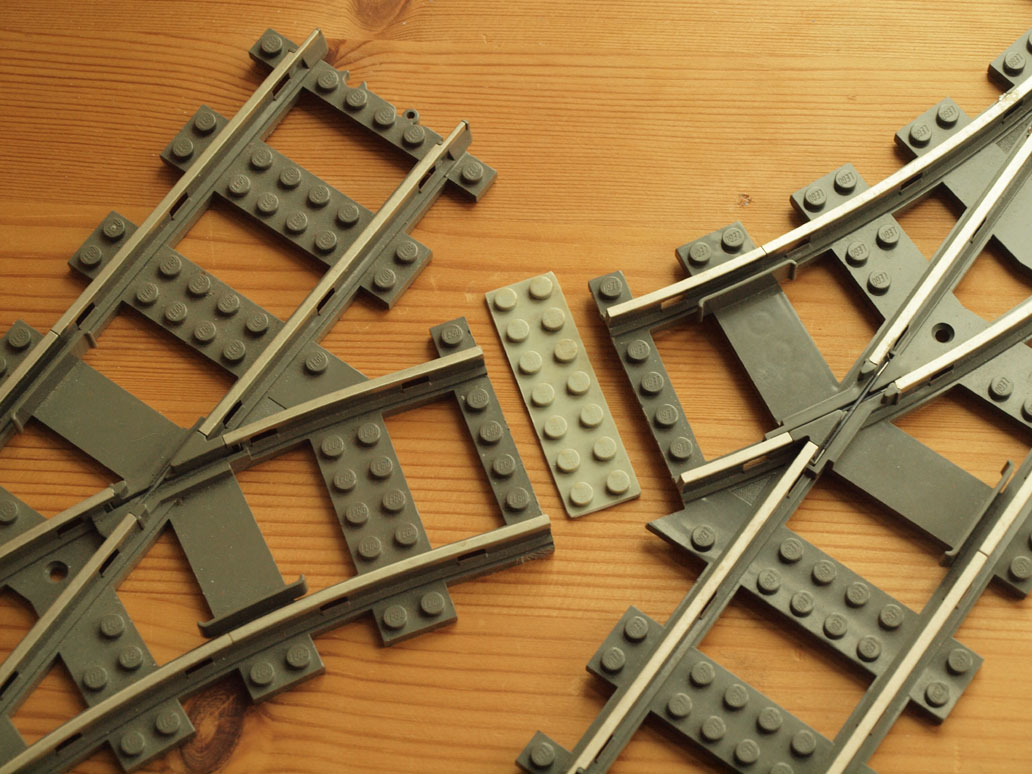

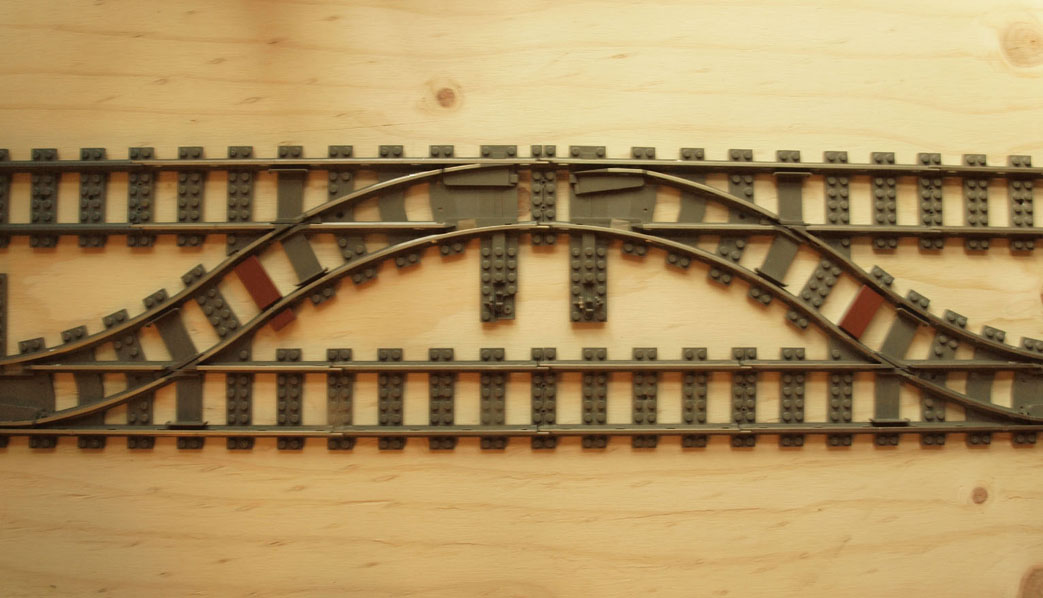

Switch point cut to a double switch.



I have chosen to make the cut a little off-center to gather with 2x8 MOD baseplates. If you make it a little big, you can file it and get away with a fairly decent connection.







Main Power. 9V speed regulator through relay or Steady power through battery.(NXT)

Sensor. Reed switch. Work with NXT push botton blok. Wedo2 motion sensor work with Pybricks

Signal. Lamp block 80s (up to 12V). (/ Physical signal Red motor 90's) often controlled with relays.

Switch point. Red engine 90's (for spring attack or modified)

Road Crossing. 2 x lamp block 80's (up to 12V). 2 x Red motor 90's controlled by motion sensor or reed switch

Light on train. Picked up from track.
