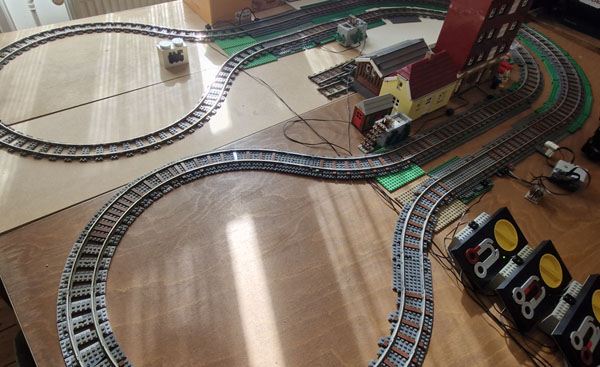

Pybricks styret 9V

pyprojekt, Sydhavn 2024

Pybricks controled LEGO 9V train trough relays.



NXT styret 9V  - NXT pic.

NXT + IR link put together wih 9V can be used to control train and switch functions (up to 11 output)



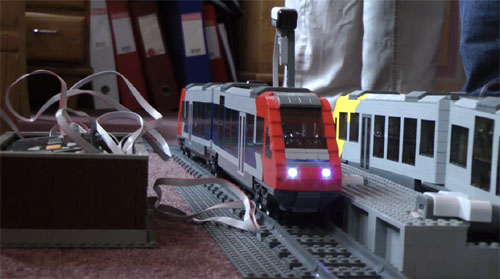

NXT styret IR

fra Legotog-workshop i Janderup 2014

NXT + IR link + Ultrasonic sensor



SBrick demo

fra Hørve 2014

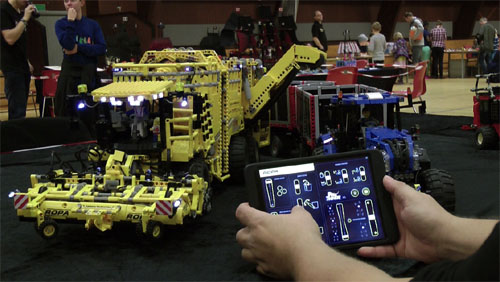

SBrick lets you control power funktions with tabloid or cell phone, longer infrared range and more input. (up to 64)



Smalspor

fra Legotog-workshop i Janderup 2014

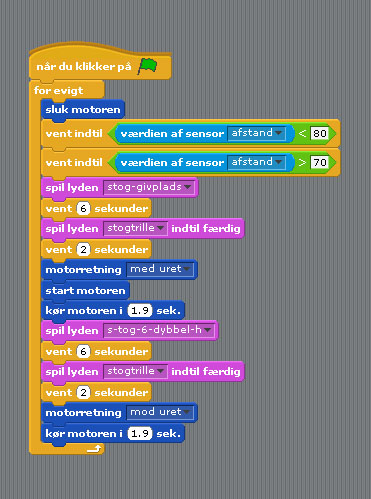

WEDO demo - pic./ Scratch project (sb)

fra Legotog-workshop i Janderup 2014

Lego WeDo with Motion sensor can in combination with 9V be used to program light train (5V) and even add sound to.

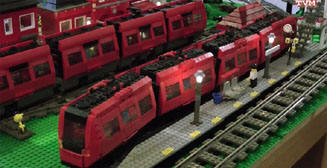

WEDO styret S-tog

WEDO styret overskæring









Management

Management /Modification /Studies

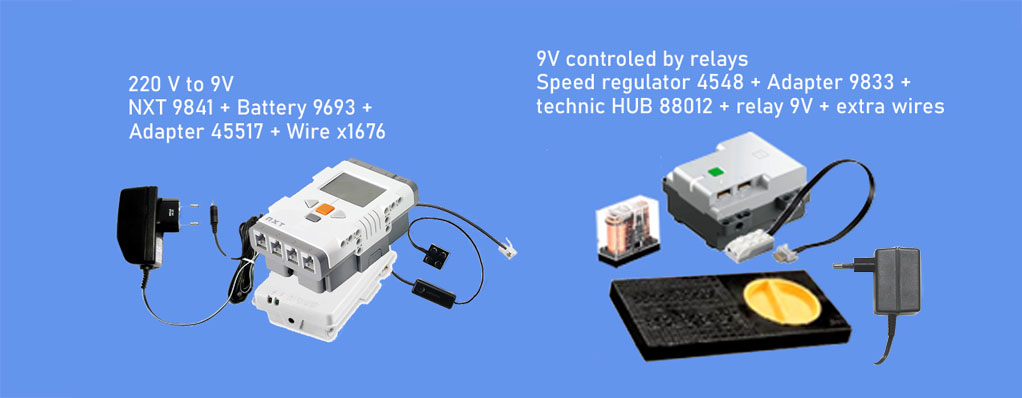

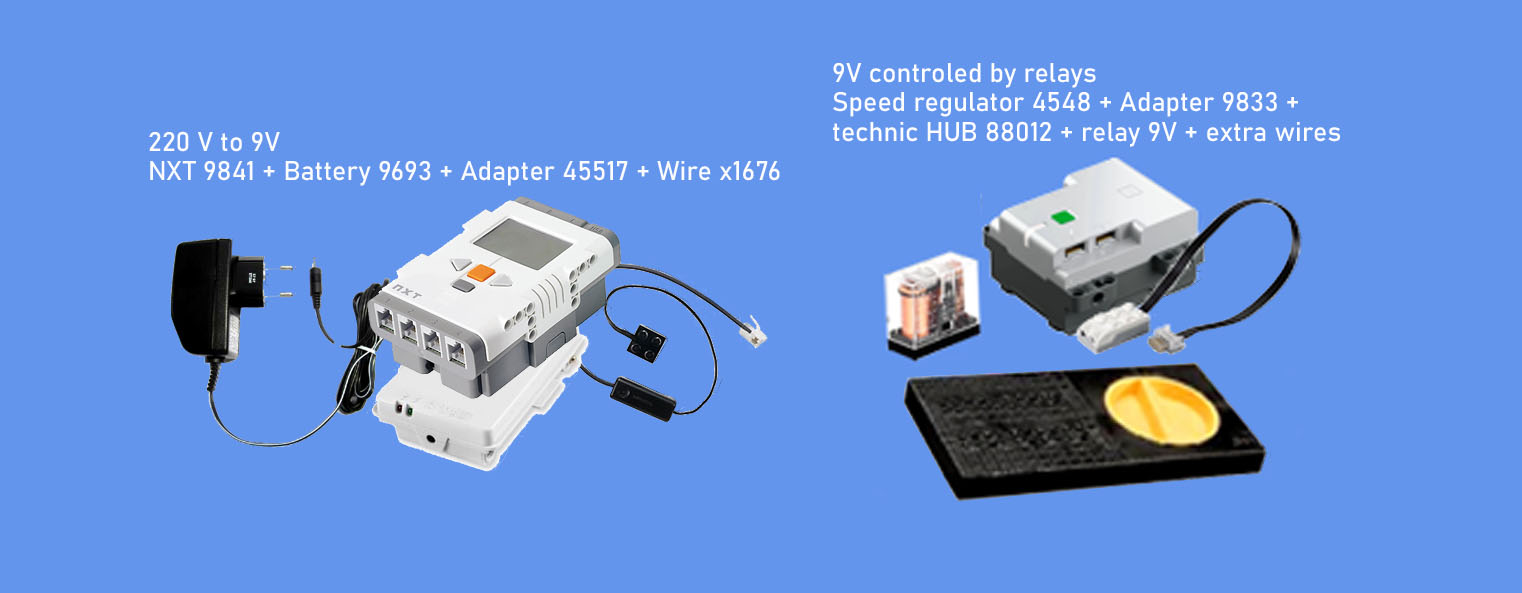

Main power. NXT to 9V; Adapter through battery and converter. PU controled 9V; PU HUB control relays who can cut and reverce the current from speed regulator.

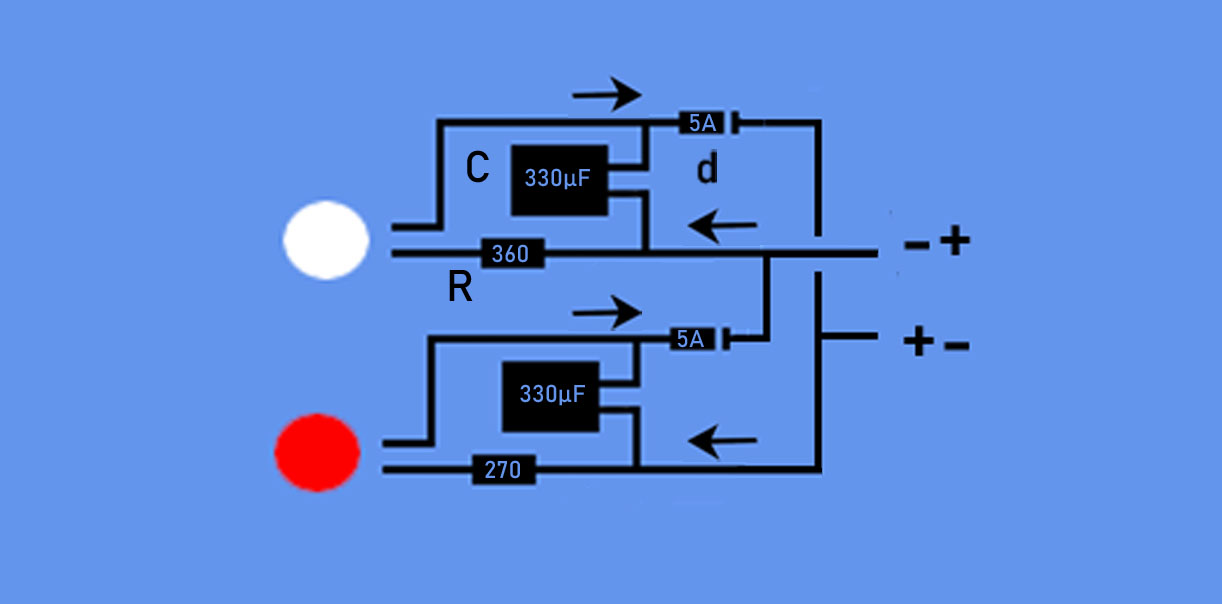

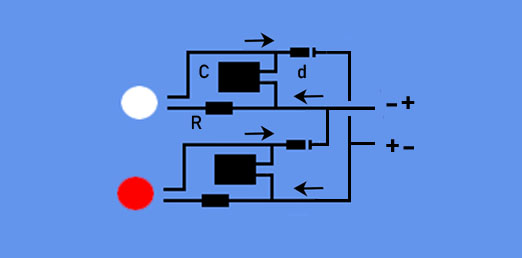

Light on trains. Picked up from engine. Before light diode there is a capacitor, a resistor and a directon diode.





Light in train from picked up will often use a diode bridge for constant light both ways.



Connection. Wireles bluetooth with Pybricks no limited.

NXT, 1 master to 3 servent, + IR link to 2 IR.

Scratch up to 4 Wedo or Sbrick hubs.



Wire connection. Manual connection via light sensor to NXT or color sensor to PU hub.



Converter and extention cord. For PU, other manufacturers supply plugs with cord and extension cord. For NXT converter to 9V is available but often I make them myself. 9V plug is the basic, use both old ones and self created. (see Modifi)



Double motor. Connect 9V + PU or PF motors. Use the pickup power source from the 9V motor for a PU or PF auxiliary motor and lights on the train.





Magnet connection. A magnet with several conductors is used for the puffs on the train. Magnets in bricks supported by copper tape to connect power between modules.



Sensor. Wedo 2.0 motion sensor. Used on a City or technic HUB with Pybricks.

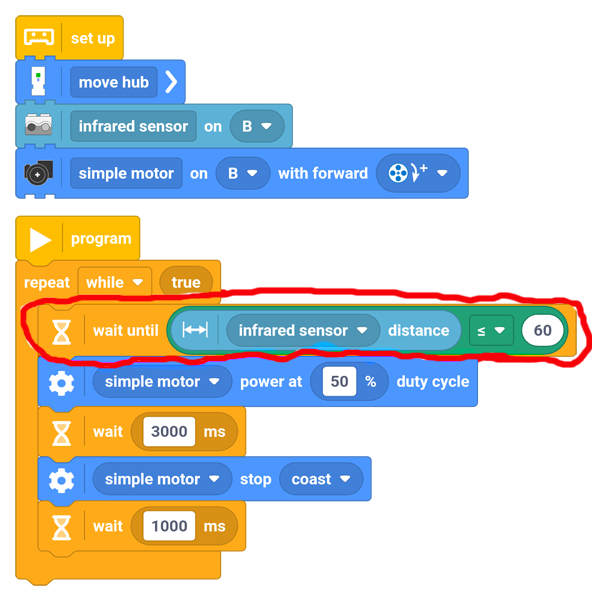

An operator is inserted in a "Wait until true" block. Then place the sensor block to the one value.



Reed switch on track for NXT. Use the touch sensor blog. Modify tiles for placement of Reed switch on track and magnet under engine.

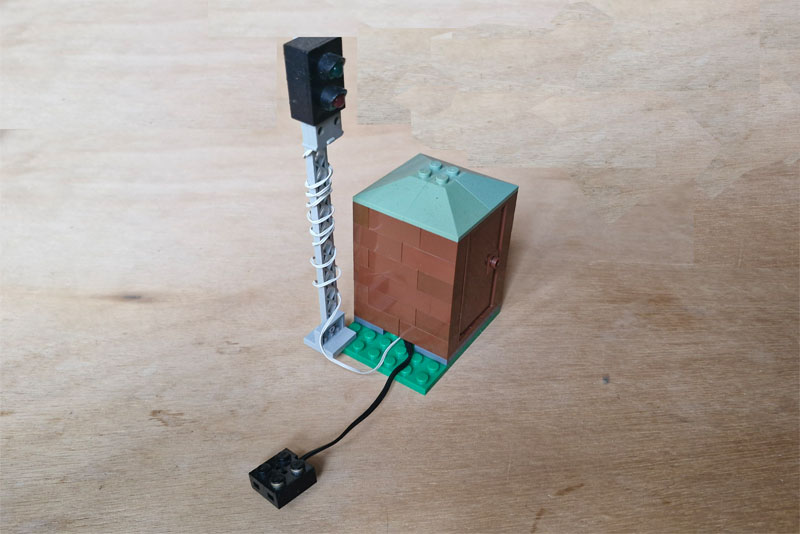

Signal. Powered with 9V battery Operated through two relays. Either from a device (hub/NXT) or taken from the rail.
At low current 5V and high 9V relay

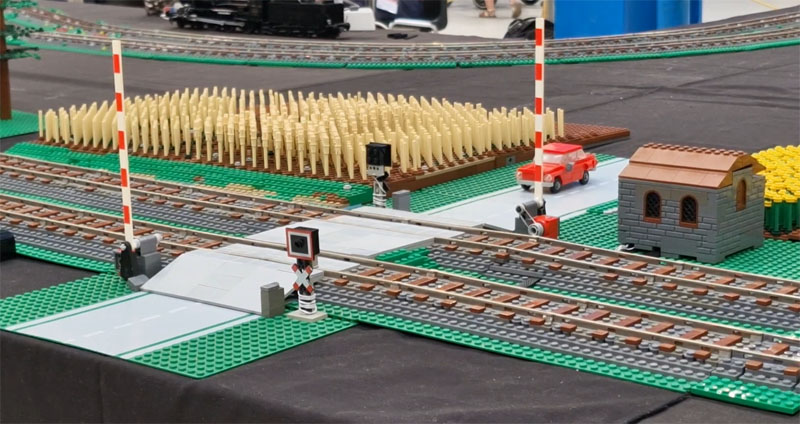

Road Crossing. 2 x lamp block 80's and 2 x red motor 90's controlled by two motion sensors on technic hub with Pybricks.





Extension cable for sensors hidden in rails. Technic hub in house. (2024).Video



NXT Road Crossing. Done with reed switch and timing and with Wedo motion sensors. (2016-18) Video



WeDo Road Crossing. (2012) Video

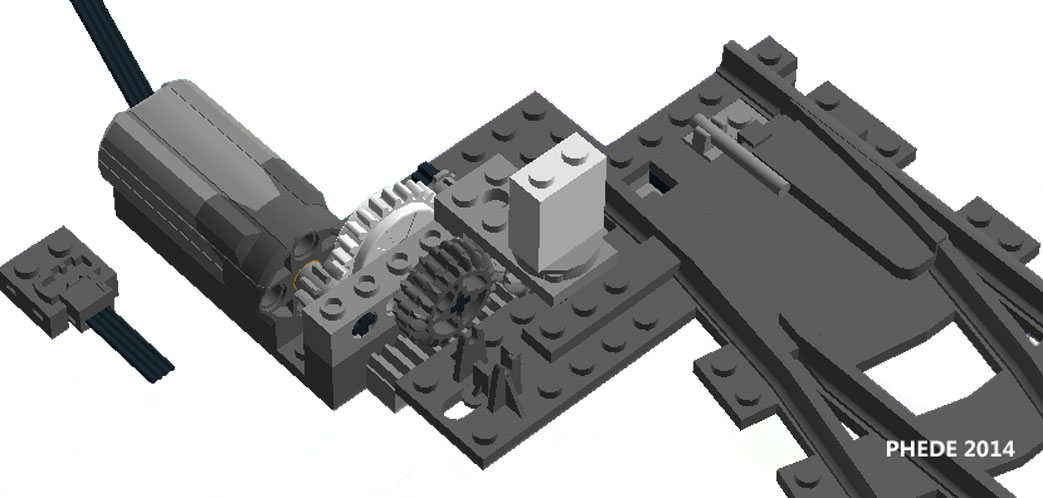

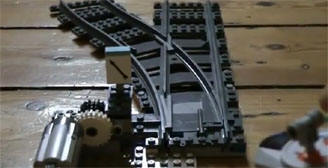

Switch point. Where the stroke is made around the mechanism using spring attach.. (It is also possible to modify the resistance by removing the back plate)



Switch point switching to the spring. Video



PF switch point,

Year: 2012

Pcs: 38

Instruction: LDD (pdf) /LDD (lft)





Main Power. 9V speed regulator through relay or Steady power through battery.(NXT)

Light on train. Picked up from track.

Sensor. Reed switch. Work with NXT push botton blok. Wedo2 motion sensor work with Pybricks

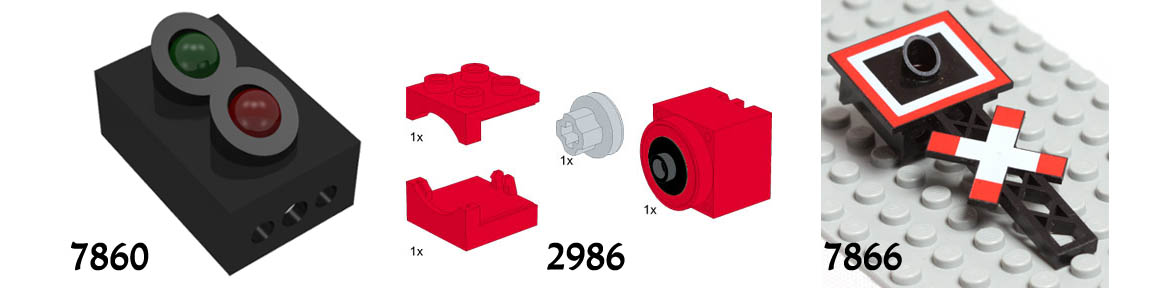

Signal. Lamp block 80s (up to 12V). (/ Physical signal Red motor 90's) often controlled with relays.

Road Crossing. 2 x lamp block 80's (up to 12V). 2 x Red motor 90's controlled by motion sensor or reed switch

Switch point. Red engine 90's (for spring attack or modified)
