Pybricks styret 9V

pyprojekt, Sydhavn 2024

Pybricks controled LEGO 9V train trough relays.



NXT styret 9V  - NXT pic.

NXT + IR link put together wih 9V can be used to control train and switch functions (up to 11 output)



NXT styret IR

fra Legotog-workshop i Janderup 2014

NXT + IR link + Ultrasonic sensor



SBrick demo

fra Hørve 2014

SBrick lets you control power funktions with tabloid or cell phone, longer infrared range and more input. (up to 64)



Smalspor

fra Legotog-workshop i Janderup 2014



WEDO demo - pic./ Scratch project (sb)

fra Legotog-workshop i Janderup 2014

Lego WeDo with Motion sensor can in combination with 9V be used to program light train (5V) and even add sound to.

WEDO styret S-tog

WEDO styret overskæring









Management

Management /Modification /Studies



Wedo 2.0 motion sensor. Used on a City or technic HUB with Pybricks.

An operator is inserted in a "Wait until true" block. Then place the sensor block to the one value.

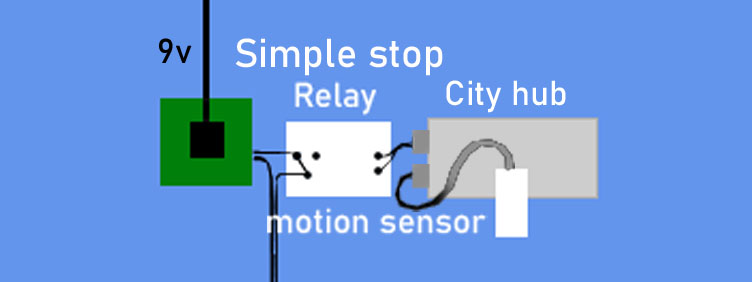

Stop module. City hub + sensor + relay. Power in from speed regulator and out to track field..

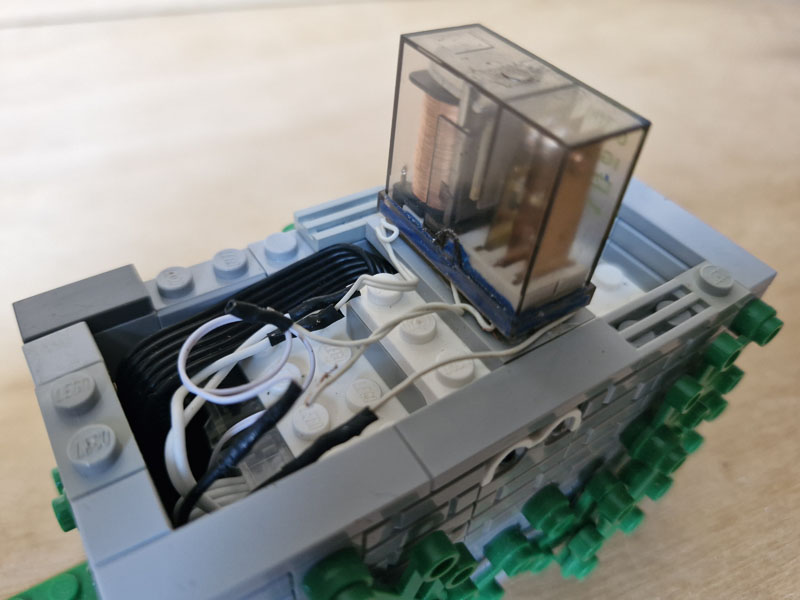

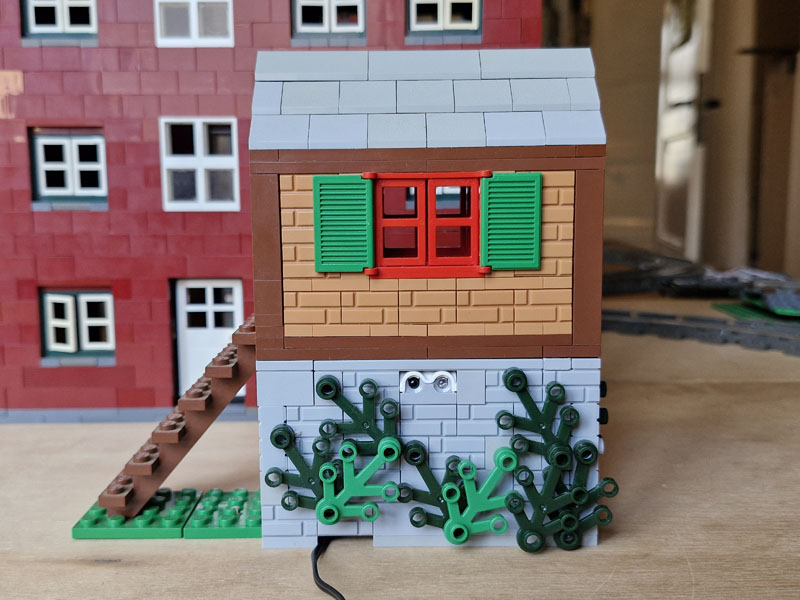

The stop house can stand outside the station and appear offset so that the train stops inside the station. Video



Reed switch on track for NXT. Use the touch sensor blog. Modify tiles for placement of Reed switch on track and magnet under engine (see Pedersen)

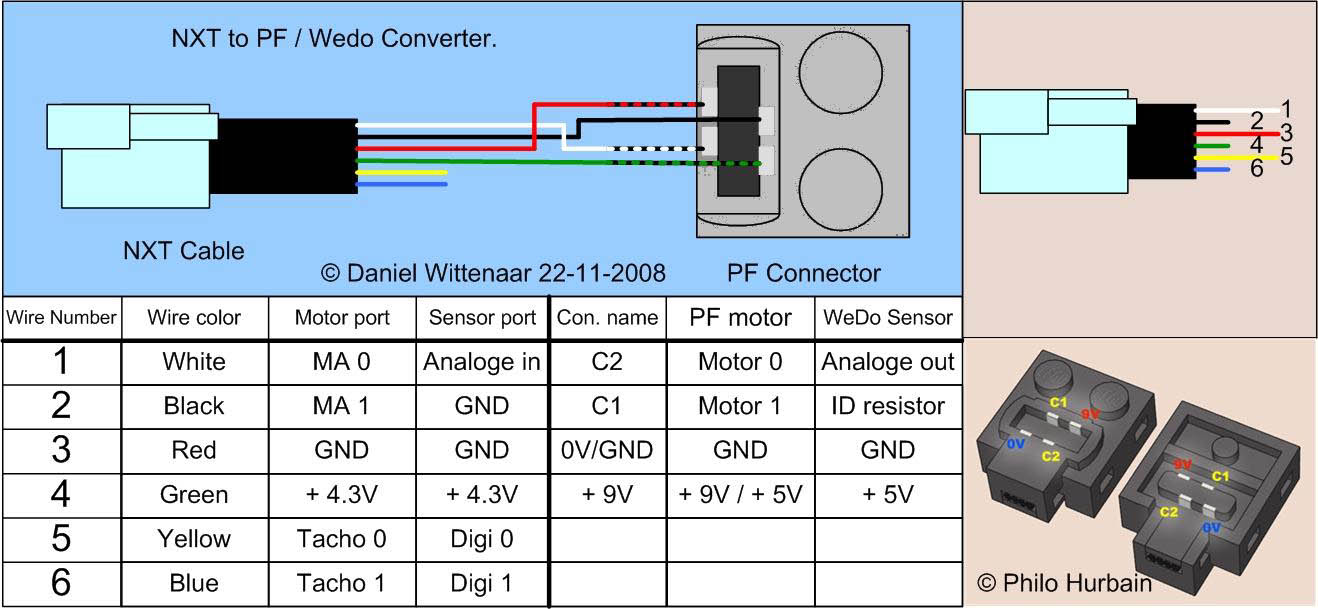

WeDo Motion Sensor to NXT Converter. Replace white and red wire. (see Wittenaar) Use SumoEyes blog.





Main Power. 9V speed regulator through relay or Steady power through battery.(NXT)

Sensor. Reed switch. Work with NXT push botton blok. Wedo2 motion sensor work with Pybricks

Signal. Lamp block 80s (up to 12V). (/ Physical signal Red motor 90's) often controlled with relays.

Switch point. Red engine 90's (for spring attack or modified)

Road Crossing. 2 x lamp block 80's (up to 12V). 2 x Red motor 90's controlled by motion sensor or reed switch

Light on train. Picked up from track.
